Joseph Drust aka Piggyson shares us with a handy solution for working with Insert Brushes, welding verts and generating clean tools. The In...
InsertMesh Master helps speed up the process of creating InsertMesh brushes. It combines settings from the Stroke Palette and the Brush Palette together and allows for these settings to be set BEFORE brush creation!
Main features are:
-Sets your InsertMesh settings BEFORE creating an InsertMesh
-Combines the most changed settings in the Brush Palette and the Stroke Palette
-Can also be used to change settings on an already created InsertMesh Brush
-Examples of some of the changeable options:
5.Lock Start and Lock End
1.UnZip the attached InsertMeshMasterV#.#.ZIP file to your \Pixologic\ZBrush 4R4\ZStartup\ZPlugs\ folder.
3.InsertMeshMaster will be located under the Zplugin tab.
ZWelderZWelder uses the 'Import:Weld' setting to Weld geometry inside of ZBrush!
-Welds your geo without leaving ZBrush
-Threshold can be changed
-Welding is non-destructive; Welded objects are appended as a new Subtool leaving the original intact
1.UnZip the attached ZWelderV#.#.ZIP file to your \Pixologic\ZBrush 4R4\ZStartup\ZPlugs\ folder.
3.ZWelder will be located under the Zplugin tab.

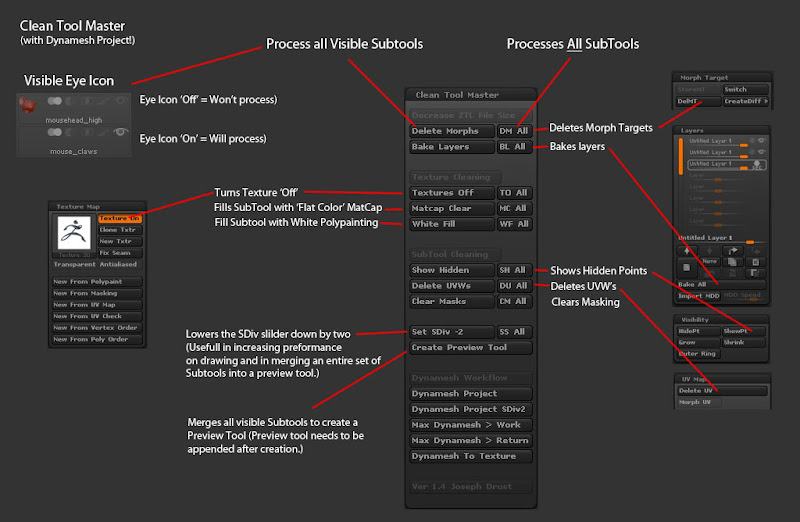

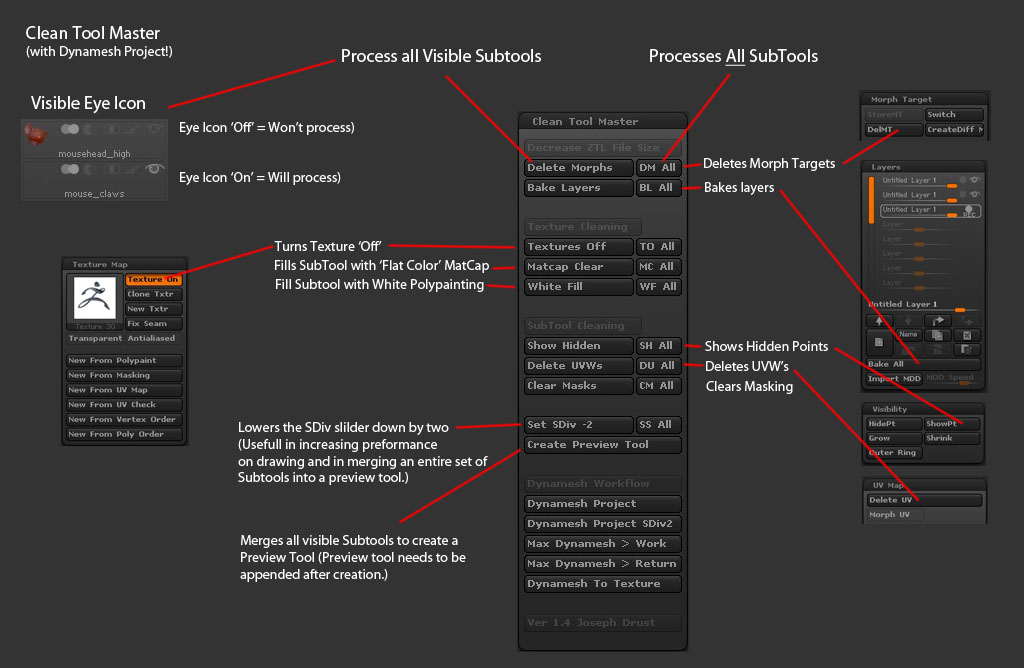

Clean Tool MasterClean Tool Master is a repository of tools that can help speed up workflow pipelines (involving Dynamesh, and Standard Subtools.)
Dynamesh options are extremely memory intensive.)
Please save your work before running them!
-Ability to run specific processes across an entire set of Subtools, or only the Visible ones (Eyeball Icon.)
-Options for automation as follows:
*Turn Textures Off
*Clear Polypainted Matcaps
*Fill Subtools with White Polypaint
*Set SDiv's lower by 2
*Create Preview Tool
-Other features involve usage with Dynamesh

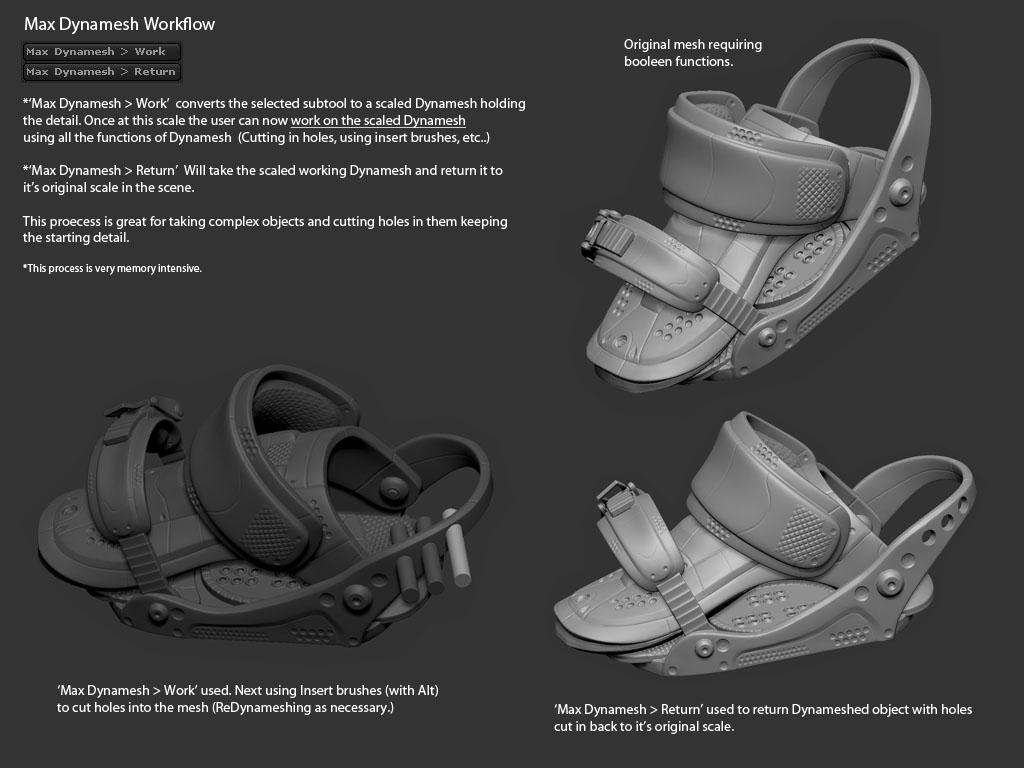

*Creating a higher then 1024 resolution Dynamesh through scaling
*Creating a higher then 1024 resolution Dynamesh that can be worked on (edited with Dynamesh active)

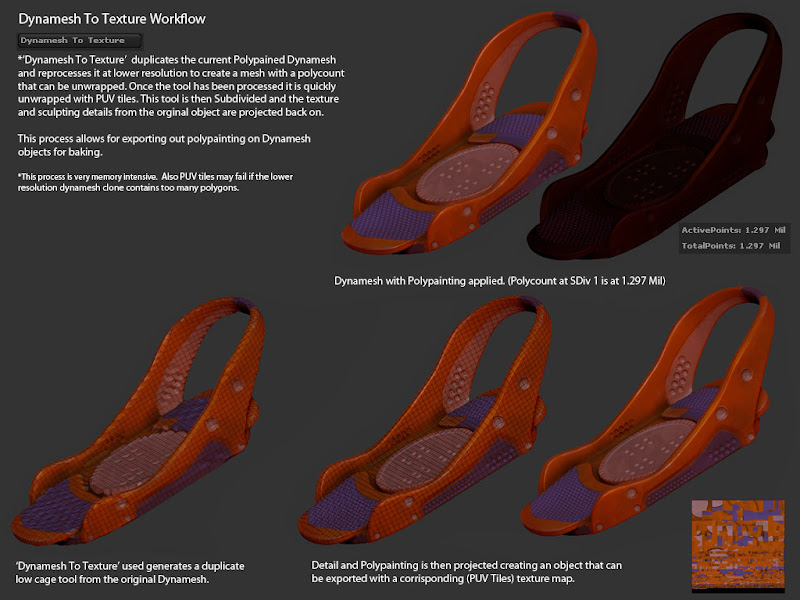

-Generating a duplicate Dynamesh Subtool that has UVW's for Polypaint exporting.
1.Copy the attached CleanToolMaster.ZSC file to your \Pixologic\ZBrush 4R2\ZStartup\ZPlugs\ folder.
3.Clean Tool Master will be located under the Zplugin tab.
More information and download InsertMesh Master and ZWelder pluginshere and Clean Tool Master here
